LED按鈕開關為按鈕開關+LED的復合式按鈕開關，開關功能件內部帶有LED指示燈，既能準確指示開關通斷狀態，同時又非常方便用戶在黑暗中尋找開關位置。它的開和關的操作都在同一位置，手按松開后翹板自動恢復平整狀態，手感更好，而且壽命更長。

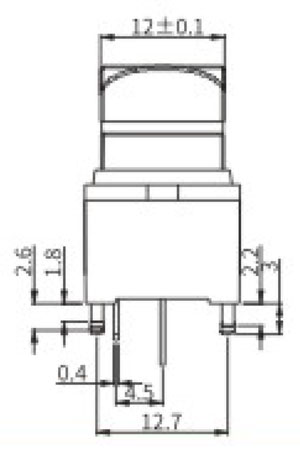

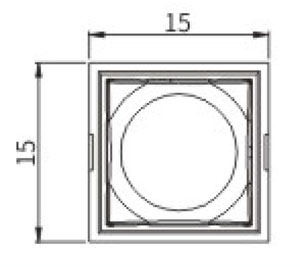

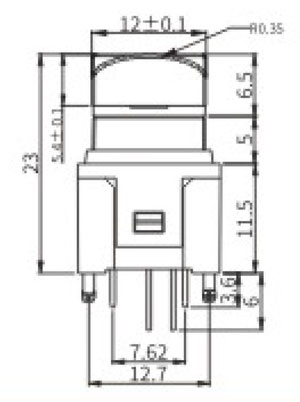

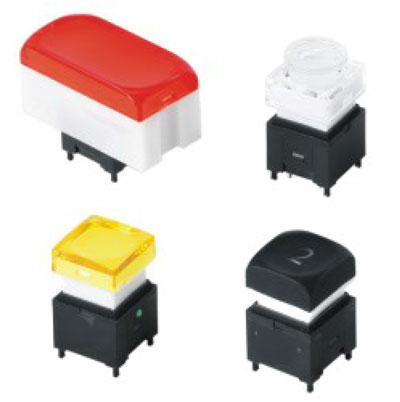

帶燈按鈕開關R292

• Circuit：SPST

• Current Rating：100mA

• Contact Resistance：200mΩ Max.(Initial)

• Insulation Resistance：100MΩ Min

• Operating Force：250±100gf

• Voltage Rating：12VDC

• Operating Temperature：-20℃ ~+70℃

• Dielectric Withstanding Voltage：250VAC for 1 minute

• Full Travel：4.5mm±0.2mm

• Mechanical LifeOver：1,000,000 cycles

• Electrical LifeOver：100,000 cycles

• Function：Momentary

• Manual Welding：350℃ for 3 seconds

• Function：OFF-(ON)

Part Number	Contact Resistance	Insulation Resistance	Operating Force	Voltage Rating	Operating Temperature	Dielectric Withstanding Voltage	Mechanical Life	Electrical Life	PDF下載
R2922-□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	暫無
R2925-□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	暫無
R2927□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	暫無
R2927□-2W-RGBT	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	暫無
R2924□-2W-□T	200mΩ Max.(Initial)	100MΩ Min	250±100gf	12VDC	-20℃ ~+70℃	250VAC for 1 minute	Over 1,000,000 cycles	Over 100,000 cycles	暫無
